La pince muti directionnelle SpanSet Gladiator est conçue pour répondre aux exigences industrielles les plus strictes. Elle offre une flexibilité à 360° pour soulever, tourner et aligner des plaques, des poutres et des structures en acier lourdes. Son étrier de levage articulé unique et sa came à alignement automatique garantissent une prise sûre et une répartition optimale de la charge dans toutes les directions. Conçue pour la sécurité, la pince Gladiator comprend des indicateurs d'usure et de surcharge et est idéale pour une utilisation sur les chantiers de construction, les chantiers navals et les usines de fabrication d'acier. Avec sa construction très résistante et ses performances certifiées, cette pince de levage polyvalente combine l'ingénierie allemande et la qualité éprouvée de SpanSet pour une manutention sûre, polyvalente et efficace.
- Corps ultra léger et incroyablement résistant en composites de fibre de carbone.
- Équipé d'un œillet de levage horizontal et vertical.
- Meilleure prise sur la pince lors de sa fixation à la plaque.
- Indicateur de charge maximale d'utilisation, placé de façon à être clairement visible sur les deux œillets de levage.
- Équipé d'un indicateur de levage sécurisé, qui garantit une force de serrage suffisante.
Demander une soumission
High Performance - Features
- Made from carbon fiber composite materials.
By using carbon fiber composites we can produce ultra lightweight lifting clamps that are also incredibly strong, are corrosion-resistant and feature superb fatigue characteristics. - Equiped with a horizontal and vertical hoisting eye.
Due to this construction, the clamps are suitable for lifting, turning (180°), moving and transfer of sheet materials, plates, beams and fabrications in horizontal and vertical position. - Fitted with a safe lifting indicator, which ensures complete safety. When the clamp screw is tightened, the safe lifting indicator moves from the left (red) to the right (green) area. When the safe lifting indicator is in the green area there is sufficient clamping force to perform a safe lift.
- Breaking Load Limit of 4x WLL.
- Tested in horizontal and vertical position; 2,000,000 load cycles.
- For use with materials with a surface hardness up to 364 HV and material tensile strength up to 1200N/mm2.
- No minimum WLL required
- Individually serialised.
Serial number and date of proof load test are marked on the body. - Instruction manual and test certificate included with each clamp.
- Service and repair manual available on request.
- All load-bearing parts are marked with a traceability code and the HPLE logo to guarantee the original, highest-quality HPLE parts.
- Individually proof tested to 2x the Working Load Limit with certification.
- RFID-equipped.
- Temperature Range -40°C/104°F - +80°C/176°F.
Gladiator Norms
- USA Norm ASME B30.20, Design category B, Service class 4 / USA Norm ASME BTH – 1
| |||||||||||

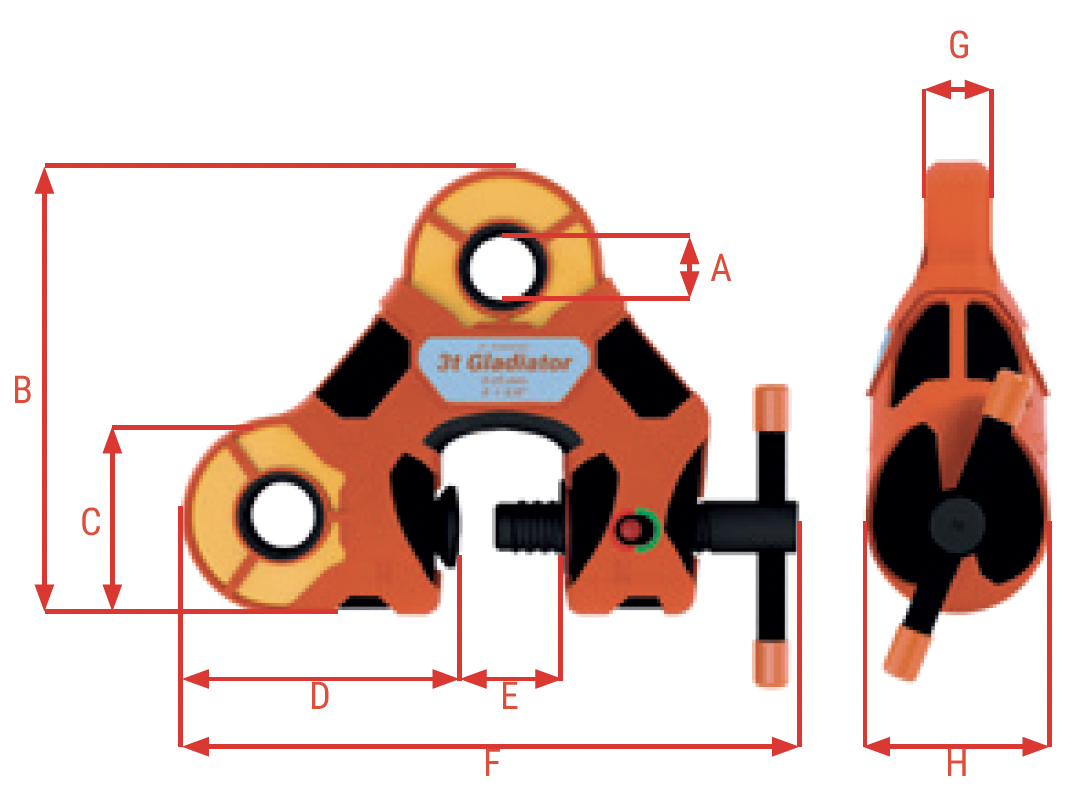

| Model | WLL(t) | Jaw aperture mm [in] | Dimensions mm [in] | Product weight [lb] | |||||||
| A | B | C | D | E | F | G | H | ||||
| 3-AD | 3 | 0-35 [0-1.34] | 30 [1.18] | 203 [7.99] | 96 [3.78] | 126 [4.96] | 62 [2.44] | 263 [10.35] | 32 [1.26] | 80 [3.15] | 3.6 [6.61] |
| 6-AD | 6 | 0-50 [0-1.97] | 38 [1.50] | 275 [10.83] | 125 [4.92] | 172 [6.77] | 65 [2.56] | 335 [13.19] | 57 [2.24] | 126 [4.96] | 9.7 [19.84] |
| For very hard materials | |||||||||||
| 3-AD H | 3 | 0-35 [0-1.34] | 30 [1.18] | 203 [7.99] | 96 [3.78] | 126 [4.96] | 62 [2.44] | 263 [10.35] | 32 [1.26] | 80 [3.15] | 3.6 [6.61] |
| 6-AD H | 6 | 0-50 [0-1.97] | 38 [1.50] | 275 [10.83] | 125 [4.92] | 172 [6.77] | 65 [2.56] | 335 [13.19] | 57 [2.24] | 126 [4.96] | 9.7 [19.84] |
| For stainless steel | |||||||||||
| 3-AD S | 3 | 0-35 [0-1.34] | 30 [1.18] | 203 [7.99] | 96 [3.78] | 126 [4.96] | 62 [2.44] | 263 [10.35] | 32 [1.26] | 80 [3.15] | 3.6 [6.61] |
| 6-AD S | 6 | 0-50 [0-1.97] | 38 [1.50] | 275 [10.83] | 125 [4.92] | 172 [6.77] | 65 [2.56] | 335 [13.19] | 57 [2.24] | 126 [4.96] | 9.7 [19.84] |
