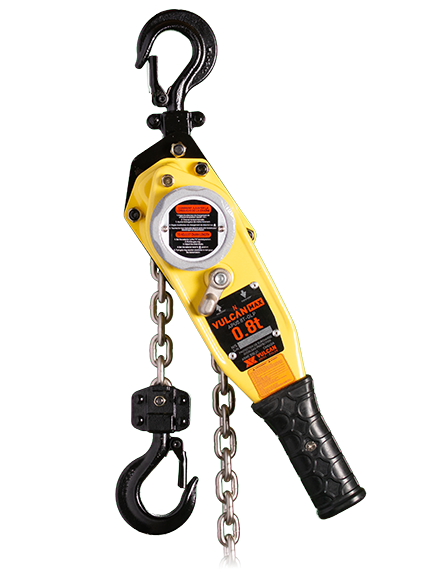

Vulcan Max Ratchet puller

Robust

• Additional load bearing plate for increased strength
• Drop forged hook for greater wear resistance
• Cold-forged gear for unsurpassed durability
• Nickel-plated load chain for enhanced corrosion resistance

Handy

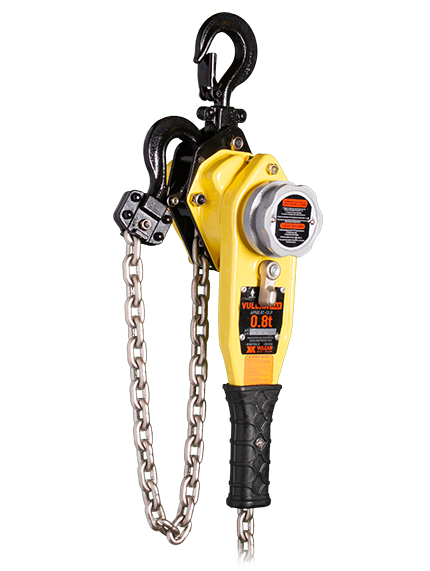

• Hook attachment point for easy transport
• Ergonomic, compact handle for working in confined spaces

Safe

• Free running system that eliminates the risk of accidentally dropping a load
• Electrically welded alloy steel chain heat treated for increased wear resistance and strength
• Overload limiter to protect the tool and the users

0.8T to 3T						6T
Capacity Ton [lb]	Force to lift max load kg [lb]	Load chain Ø (mm) x nb. falls	Load chain grade	Net weight* kg [lb]	Extra weight /lift kg/m [lb/ft]	Dimensions mm [in]
						A	B	C	H min	L	K
0.8 [1763]	30 [66.1]	6.3 x1	80	7 [15.5]	0.86 [0.58]	155.5 [6.12]	102 [4.02]	121 [4.76]	329.5 [12.57]	273 [10.75]	31.0 [1.220]
1.5 [3306]	30 [66.1]	7.1 x 1		10.5 [23.2]	1.10 [0.74]	168.5 [4.21]	107 [4.21]	141.5 [5.57]	379 [14.92]	386 [15.20]	38.0 [1.496]
2 [4409]	40 [88.2]			11 [24.3]					395 [15.55]		42.0 [1.654]
3 [6613]	37  [81.5]	9.0 x 1	100	17.5 [38.7]	1.76 [1.18]	201 [7.91]	117 [4.61]	172.5 [6.79]	465 [18.31]		46.0 [1.811]
6 [13227]	38 [83.8]	9.0 x 2		29 [64.1]	3.52 [2.37]			241 [9.49]	615 [24.21]		50.0 [1.969]

* For a ratchet puller with 5' of lift or pull distance
