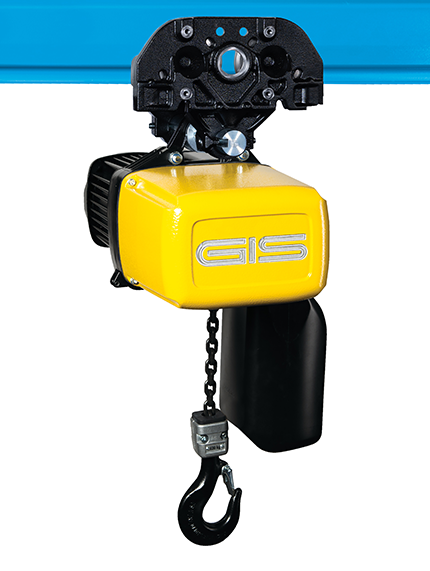

The GIS GHF Push Trolley is a durable, precision-aligned beam trolley designed for effortless manual movement of suspended loads. With a low headroom profile and adjustable flange width, it integrates easily into tight installations or existing systems. Manufactured in Switzerland, the GHF trolley runs smoothly on high-grade ball bearings and is ideal for cleanroom environments, workshops, and light industrial settings where simplicity and reliability are essential.
- Manual trolley for steel beams
- Manual or electric chain hoist moved manually
- Load wheels made of cast iron, with ball bearings
- Side plates made of cast iron with fall and climbing protection
- Flange width infinitely variable
Request a quote
Technical Specifications
| Maximum load capacities | GHF500: 500kg, GHF1250: 1250 kg, GHF2500: 2500 kg, GHF5000: 5000 kg, GHF6300: 6300 kg |
| Flange widths | GHF500: 100 - 149 mm, GHF1250: 70 - 240 mm, GHF2500: 88 - 300 mm, GHF5000 / 6300: 91 - 300 mm |
| Minimum curve radius (with carrier roller) | GHF1250: 1300 mm, GHF2500: 1800 mm, GHF5000 / 6300: 2200 mm |
| Material | Side plates and load wheels made of cast iron |
| Load wheels | Load wheels for flat running surfaces Support bolt Galvanised support bolt |
| Support bolt | Load wheels for flat running surfaces Support bolt Galvanised support bolt |
| Protection | Fall and climbing protection |
Customer's Benefit
The GHF500 and the GHF1250 - 6300 trolleys are designed for maximum flexibility and longevity:
Load wheels with a larger diameter can be matched to the beam surface ensure a longer service life and optimum running properties.

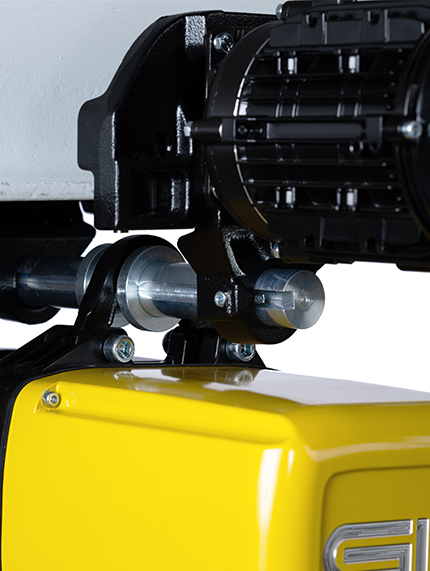

The flange width is infinitely variable by means of a new type of adjustment system and can be fixed easily by using the a locking function. This makes assembly on site easier.
Optionally available support carrier rollers ensure smooth running in curves.
Accessories & Options
- Trolley in corrosion resistant version
- Carrier rollers for cornering
- Convex load wheels made of cast iron
- Plastic load wheels
- Load wheels made of stainless steel
- Special support bolts for special flange widths
- Load temperature grease for bearings to the load wheels
- Parking brake for GHF1250
| |||||||||||
| Models | Capacity | Weight | e1 | f4 | f5 | g1 | g2 | Flange width (mm) | Min. curve radius | Max. flange thickness | |
| (kg) | (kg) | (mm) | Min | Max | (mm) | ||||||
| GHF500 | 500 | 2.5 | 215 | 183-233 | 62 | 48 | 122 | 100 | 149 | - | 24 |
| GHF1250 | 1250 | 11 | 239 | 186-286 | 40 | 48 | 179 | 70 | 240 | 1000 | 26 |
| GHF2500 | 2500 | 20 | 286 | 258-358 | 44.5 | 57 | 218 | 88 | 300 | 1500 | 30 |
| GHF5000 | 5000 | 32 | 341 | 268-368 | 47.5 | 57 | 241 | 91 | 300 | 1800 | 35 |
| GHF6300 | 6300 | 47 | 387 | 292-392 | 49.5 | 54.5 | 270 | 91 | 300 | 1800 | 36 |
