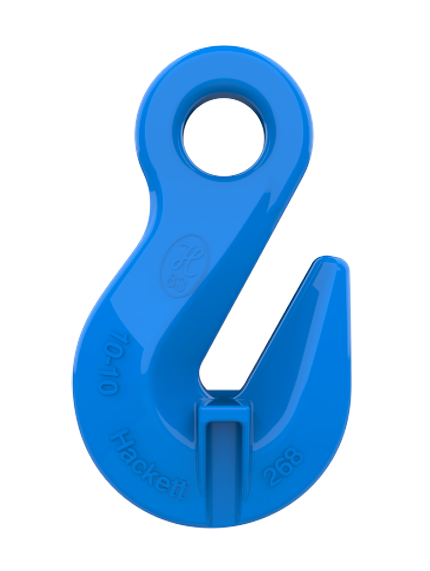

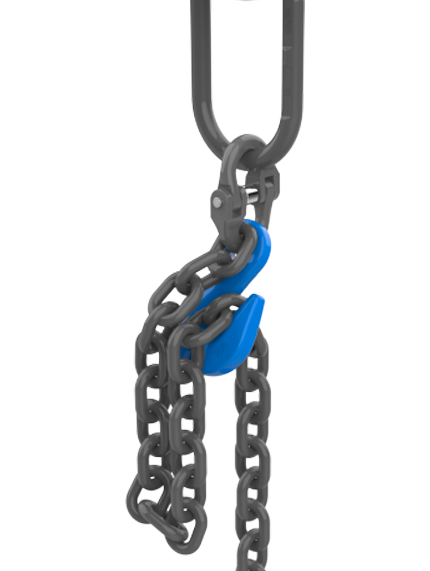

The Hack10 eye grab hook is fundamentally used to grab chain. As a result, it is commonly used in lifting applications as a chain shortening device, as well as for lashing. It features an eye attachment type for use with chain via a connector. Manufactured from alloy steel, the Hack10 eye grab hook is 25% stronger than a grade 8 equivalent, delivering a greater working load limit without the need for a larger diameter chain sling.
- Two year warranty
- Alloy steel
- Safety factor 4:1
- 1.4t to 10t
- Operational temperature - 40°C to + 200°C
Documentation
| |||||||||||

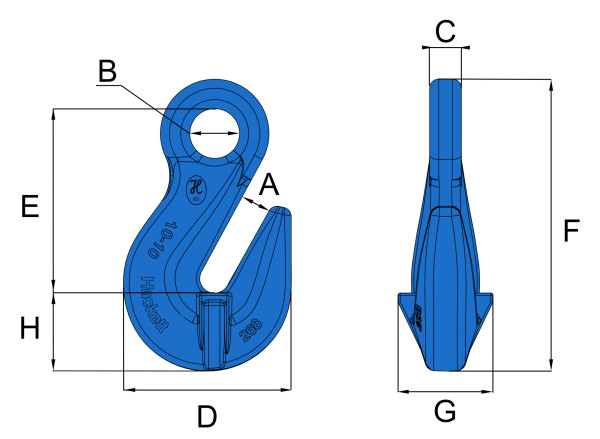

| Part code | WLL lbs [tonnes] | Mass lbs [kg] | Dimensions in [mm] | ||||||||
| Chain size | A | B | C | D | E | F | G | H | |||
| 10-H04-06 | 3200 [1.4] | 0.33 [0.15] | 7/32 [6] | 0.31 [8.0] | 0.53 [13.5] | 0.31 [8.0] | 1.83 [46.5] | 1.81 [46] | 2.87 [73] | 1.00 [25.5] | 0.80 [20.2] |
| 10-H04-08 | 5700 [2.5] | 0.66 [0.30] | 5/16 [8] | 0.43 [11.0] | 0.69 [17.5] | 0.37 [9.5] | 2.09 [53.0] | 2.40 [61] | 3.66 [93] | 1.32 [33.5] | 0.87 [22.0] |
| 10-H04-10 | 8800 [4.0] | 1.74 [0.79] | 3/8 [10] | 0.53 [13.5] | 0.87 [22.0] | 0.55 [14.0] | 2.91 [74.0] | 3.35 [85] | 5.08 [129] | 1.65 [42.0] | 1.22 [31.0] |
| 10-H04-13 | 15000 [6.7] | 3.68 [1.67] | 1/2 [13] | 0.67 [17.0] | 1.06 [27.0] | 0.73 [18.5] | 3.78 [96.0] | 4.09 [104] | 6.54 [166] | 2.11 [53.5] | 1.87 [47.5] |
| 10-H04-16 | 22600 [10.0] | 6.04 [2.74] | 5/8 [16] | 0.75 [19.0] | 1.42 [36.0] | 0.87 [22.0] | 4.57 [116.0] | 4.69 [119] | 7.32 [186] | 2.91 [74.0] | 1.89 [48.0] |
