Vulcan ratchet puller 50

Wish to order online?

If you wish to order online, please

or Open an account

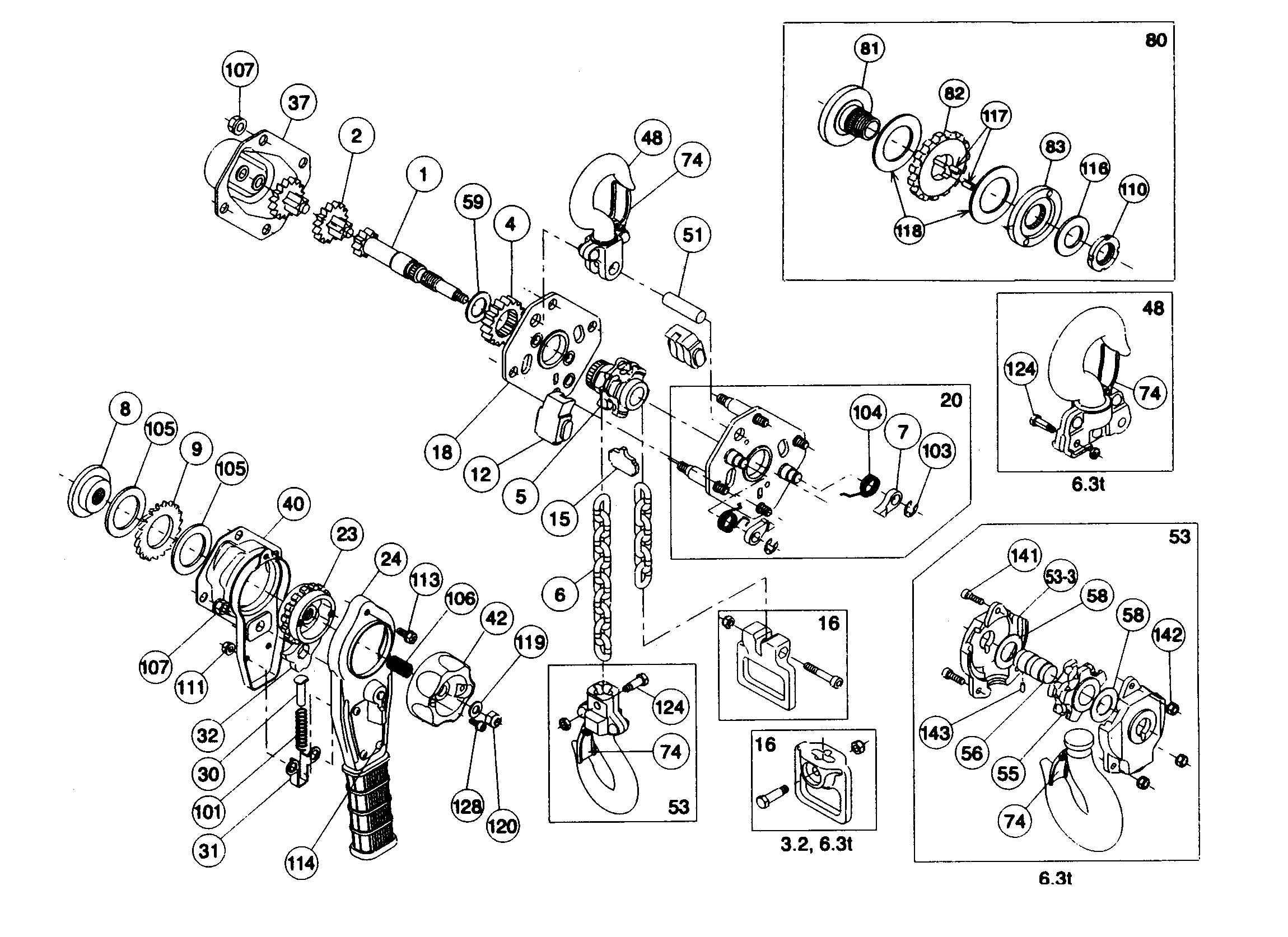

Ref. Sku Description Qty
1 BLPVPU3/4-50#001 PINION SHAFT 3/4 T MODEL RB-50 1
2 BLPVPU3/4-50#002 PINION W/PINION GEAR 3/4T MODEL RB-50 2
4 BLPVPU3/4-50#004 LOAD GEAR 3/4 T MODEL RB-50 1
5 BLPVPU3/4-50#005 LOAD SHEAVE 3/4 T MODEL RB-50 5
6 BLPVPU3/4-50#006 FT. CHAIN 3/4 T MODEL RB-50 2
7 BLPVPU3/4-50#007 PAWL 3/4 T MODEL RB-50 1
8 BLPVPU3/4-50#008 DISC HUB 3/4 T MODEL RB-50 1
9 BLPVPU3/4-50#009 RATCHET WHEEL 3/4T MODEL RB-50 1
12 BLPVPU3/4-50#012 CHAIN GUIDE 3/4 T MODEL RB-50 1
15 BLPVPU3/4-50#015 STRIPPER 3/4 T MODEL RB-50 1
16 BLPVPU3/4-50#016 STOP GRIP 3/4 T MODEL RB-50 1
18 BLPVPU3/4-50#018 GEAR-SIDE PLATE 3/4 T MODEL RB-50 1
20 BLPVPU3/4-50#020 HANDLE-SIDE PLATE 3/4 T MODEL RB-50 1
23 BLPVPU3/4-50#023 DISC NUT 3/4 T MODEL RB-50 1
24 BLPVPU3/4-50#024 OPERATING HANDLE 3/4 T MODEL RB-50 1
25 BLPVPU3/4-50#025 RUBBER HANDLE 3/4 T MODEL RB-50 1
30 BLPVPU3/4-50#030 SPRING SHAFT 3/4 T MODEL RB-50 1
31 BLPVPU3/4-50#031 SHAFT BASE 3/4 T MODEL RB-50 1
32 BLPVPU3/4-50#032 HANDLE PAWL 3/4 T MODEL RB-50 1
37 BLPVPU3/4-50#037 GEAR COVER 3/4 T MODEL RB-50 1
40 BLPVPU3/4-50#040 RATCHET COVER 3/4 T MODEL RB-50 1
42 BLPVPU3/4-50#042 GUIDE HANDLE 3/4 T MODEL RB-50 1
48 BLPVPU3/4-50#048 TOP HOOK, YOKE & LATCH 3/4 T MODEL RB-50 1
51 BLPVPU3/4-50#051 YOKE PIN 3/4 T MODEL RB-50 1
53 BLPVPU3/4-50#053 BOTTOM HOOK/YOKE/LATCH 3/4T MODEL RB-50 PU EN STOCK 1
59 BLPVPU3/4-50#059 PINION SHAFT WASHER 3/4 T MODEL RB-50 1
74 BLPVPU3/4-50#074 SAFETY LATCH ASSEMBLY 3/4 T MODEL RB-50 2
80 BLPVPU3/4-5OP080 OVERLOAD PROTECTION DEVICE 3/4 T RB-50 1
81 BLPVPU3/4-5OP081 DISC NUT FOR OLP 3/4 T RB-50 1
82 BLPVPU3/4-5OP082 FRICTION GEAR FOR OLP 3/4 T RB-50 1
83 BLPVPU3/4-5OP083 FRICTION HUB FOR OLP 3/4 T RB-50 1
101 BLPVPU3/4-50#101 CHANGE-OVER SPRING 3/4 T MODEL RB-50 1
103 BLPVPU3/4-50#103 SNAP RING 3/4 T MODEL RB-50 2
104 BLPVPU3/4-50#104 PAWL SPRING 3/4 T MODEL RB-50 2
105 BLPVPU3/4-50#105 FRICTION DISC 3/4 T MODEL RB-50 2
106 BLPVPU3/4-50#106 FREE-WHEELING SPRING 3/4 T MODEL RB-50 1
107 BLPVPU3/4-50#107 SPRING NUT 3/4 T MODEL RB-50 8
110 BLPVPU3/4-5OP110 LOCK NUT FOR OLP 3/4 T RB-50 1
111 BLPVPU3/4-50#111 SPRING NUT 3/4 T MODEL RB-50 2
113 BLPVPU3/4-50#113 SCREW W/SPRING WASHER 3/4 T MODEL RB-50 1
114 BLPVPU3/4-50#114 NAME PLATE 3/4 T MODEL RB-50 1
116 BLPVPU3/4-5OP116 DISC SPRING FOR OLP 3/4 T RB-50 1
117 BLPVPU3/4-5OP117 ROLLER FOR OLP 3/4 T RB-50 1
118 BLPVPU3/4-5OP118 FRICTION DISC FOR OLP 3/4 T RB-50 2
119 BLPVPU3/4-50#119 FLAT WASHER 3/4 T MODEL RB-50 1
120 BLPVPU3/4-50#120 LOCK NUT 3/4 T MODEL RB-50 1
124 BLPVPU3/4-50#124 CHAIN FASTENING BOLT 3/4 T MODEL RB-50 1
128 BLPVPU3/4-50#128 SCREW & SPRING WASHER 3/4 T MODEL RB-50 2
